Project 1 : Form and Function
Architectural Design 2 - ARC 257
This project focused on the importance of appearance and practicality in creating a completely new design that was functional and creative. We were given the task of redesigning an existing bridge in order to see if water traffic could pass through.
Span Prototype
Name: Sydney harbor Bridge
Location: New South Wales, Australia
Type: Arch Bridge
Name: The Forth Bridge
Location: Edinburgh, Scotland
Type: Cantilever Bridge
Name: Tokyo Gate Bridge
Location: Koto City, Japan
Type: Cantilever Bridge
Movement Analogies
Finding five household items was our objective and present it to the class in order to see if there was a mechanical sense, Afterwards we had to choose three of the items that we wanted to use for the bridge opening. The three items that I went with were eyelash curler, locking pliers and a wine bottle opener. Then we took each item, 3-D modeled them and diagramed the functions of each item.
Eye Lash Curler
Wine Bottle Opener
Locking pliers
Preliminary 3x3 Prototype Table
This diagram shows the three conceptual spans and three household items and the combination of them into a 3x3 diagram containing 9 total prototypes.
Selected Model

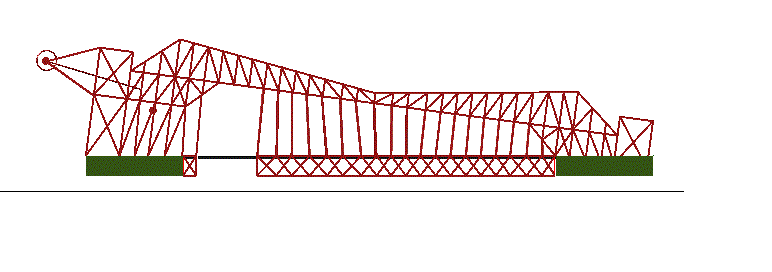

Bridge Process
Asometric Views
West View
North View
South View
East View
